Welding Capabilities
Overview
-
15- Lincoln DC-1000s
-
15- Miller Dimension 452
-
1- Miller Dimension 652
-
1- Miller Syncrowave 520 DX
-
1- Miller SRH 555
-
2- Miller SRH 444
Lincoln DC-1000- Subarc (QTY 15)
-
Rated Output- 1000 A at 44 V DC, 100% duty cycle
-
Output Range- 150-1000 A, 16-46 V DC
Miller Dimension 452 (QTY 15)
-
Rated Output- 450 A at 38 V DC, 100% duty cycle
-
Output Rang- CC mode: 15-500 A, CV mode: 10-38
Welding Processes-
-
MIG (GMAW)
-
Flux-Cored (FCAW)
-
Stick (SMAW)
-
TIG (scratch start)
-
Air Carbon Arc Gouging (up to 3/8 in carbon)
Miller Dimension 652
-
Rated Output-650 A at 44 DC, 100% duty cycle
-
Output Type- Constant Current (CC)/ Contant Voltage (CV)
Welding Processes-
-
MIG (GMAW)
-
Flux-Cored (FCAW)
-
Stick (SMAW)
-
TIG (scratch start)
-
Air Carbon Arc Gouging (up to 3/8 in carbon)
Miller Syncrowave 520DX
-
Rated Output- 520 A at 40.8 V AC/DC, 100% duty cycle
-
Current Rang- 3-650 A
Welding Processes-
-
MIG (GMAW)
-
Flux-Cored (FCAW)
-
Stick (SMAW)
-
TIG (scratch start)
-
Air Carbon Arc Gouging (up to 3/8 in carbon)
​
Miller SRH 555
-
Rated Output- 550 A DC
-
Output Range- 45-550 A DC
Welding Proccesses-
-
MIG (GMAW)
-
Flux-Cored (FCAW)
-
Stick (SMAW)
-
TIG (scratch start)
-
Air Carbon Arc Gouging (up to 3/8 in carbon)
Miller SRH 444 (QTY 2)
-
Rated Output- 400 A at 36 V DC
​
Welding Proccesses-
-
MIG (GMAW)
-
Flux-Cored (FCAW)
-
Stick (SMAW)
-
TIG (scratch start)
-
Air Carbon Arc Gouging (up to 3/8 in carbon)
Manipulators and (Drive Rolls)
Manipulators
-
Maximum Capacity @ End - 150lbs
-
Max Height - 6-8 Feet
-
Max Reach- 6.5- 10 Feet
​​
Drive Rolls
-
Maximum capacity- 20000 lbs

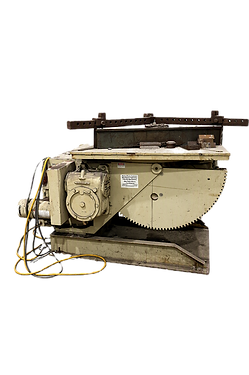

Positioners
Pandjiris​
-
Tilt torque- 4500 @ 12" - 1450 @ 48"
-
Table size- 48" X 48"
-
Tilt Range- 0 - 135 degrees
​Aronson
-
Tilt torque- 28000 @ 6" - 7500 @ 60"
-
Table size- 54" X 54"
-
Tilt Range- 0 - 135 degrees
Custom Overlay Station
-
Max. Load Torque- 16742 LB. IN. ROT.
-
RPM- 0.462​
